¶ LiveBench for the Evaluation of NeoLite (SiT912xx chip designs)
¶ Contents
- Introduction to NeoLite SiT912xx
- Lab Setup
- Key Features
- Applications
- Test Outputs
- Document links
¶ Introduction to Neolite SiT912xx :
The SiT912xx is a low phase noise MEMS-based clock generator designed for low-power, low jitter applications. The device has a single clock domain and can drive up to 8 low-skew single-ended output loads or 4 low-skew differential loads. The SiT912xx integrates an internal MEMS resonator as the frequency source for the internal PLL, eliminating the need for an external oscillator o resonator.
The device is fully configurable in output frequency, I/O style (differential and LVCMOS) and individual output enables through the serial interface. Internal monitor flags and alarm conditions are reported through GPIOs. The device is compliant with PCIe Generation 1-6 including configurable spread-spectrum clocking. User-defined, pre-programmed and user-programmable NVM enables a high degree of flexibility and defined startup- configuration. Configurable GPIO pins support state changes such as individual output enable selection.
¶ SiT91211
¶ MEMS-based Clock Generator :
The SiT91211 is a low phase noise MEMS-based clock generator designed for low-power, low jitter applications. The device has a single clock domain and can drive up to 8 low-skew single-ended output loads or 4 low-skew differential loads. The SiT91211 integrates an internal MEMS resonator as the frequency source for the internal PLL, eliminating the need for an external oscillator or resonator.
Documentation: https://www.sitime.com/products/mems-clock-generators/sit91211
¶ SiT91213
¶ MEMS-based Clock Generator :
The SiT91213 is a low phase noise MEMS-based clock generator designed for low-power, low jitter applications. The device has a single clock domain and can drive up to 8 low-skew single-ended output loads or 4 low-skew differential loads. The SiT91213 integrates an internal MEMS resonator as the frequency source for the internal PLL, eliminating the need for an external oscillator or resonator.
Documentation: https://www.sitime.com/products/jitter-cleaners/sit91213
¶ SiT91219
¶ MEMS-based Clock Generator :
The SiT91219 is a low phase noise MEMS-based clock generator designed for low-power, low jitter applications. The device has a single clock domain and can drive up to 8 low-skew single-ended output loads or 4 low-skew differential loads. It comes with an internal MEMS resonator as the frequency source for the internal PLL, eliminating the need for an external oscillator or resonator.
Documentation: https://www.sitime.com/products/network-synchronizers/sit91219

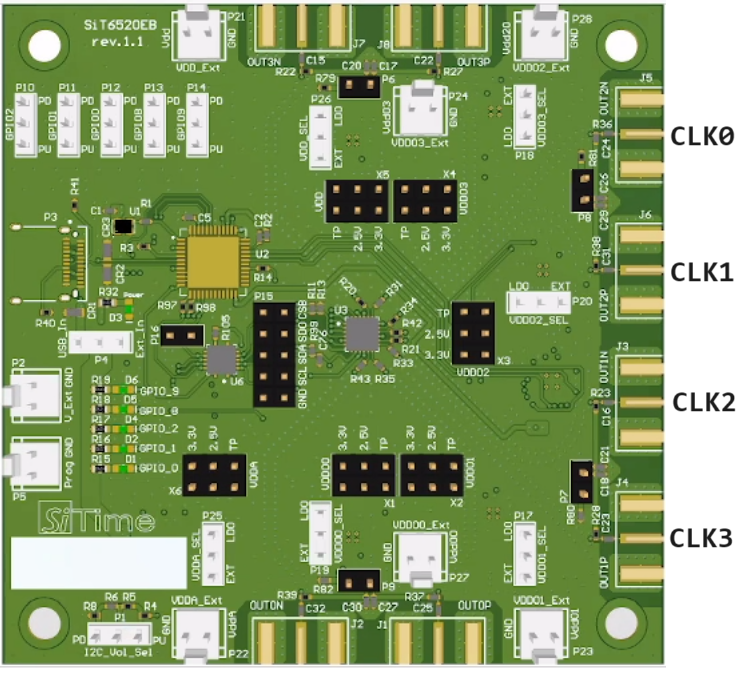

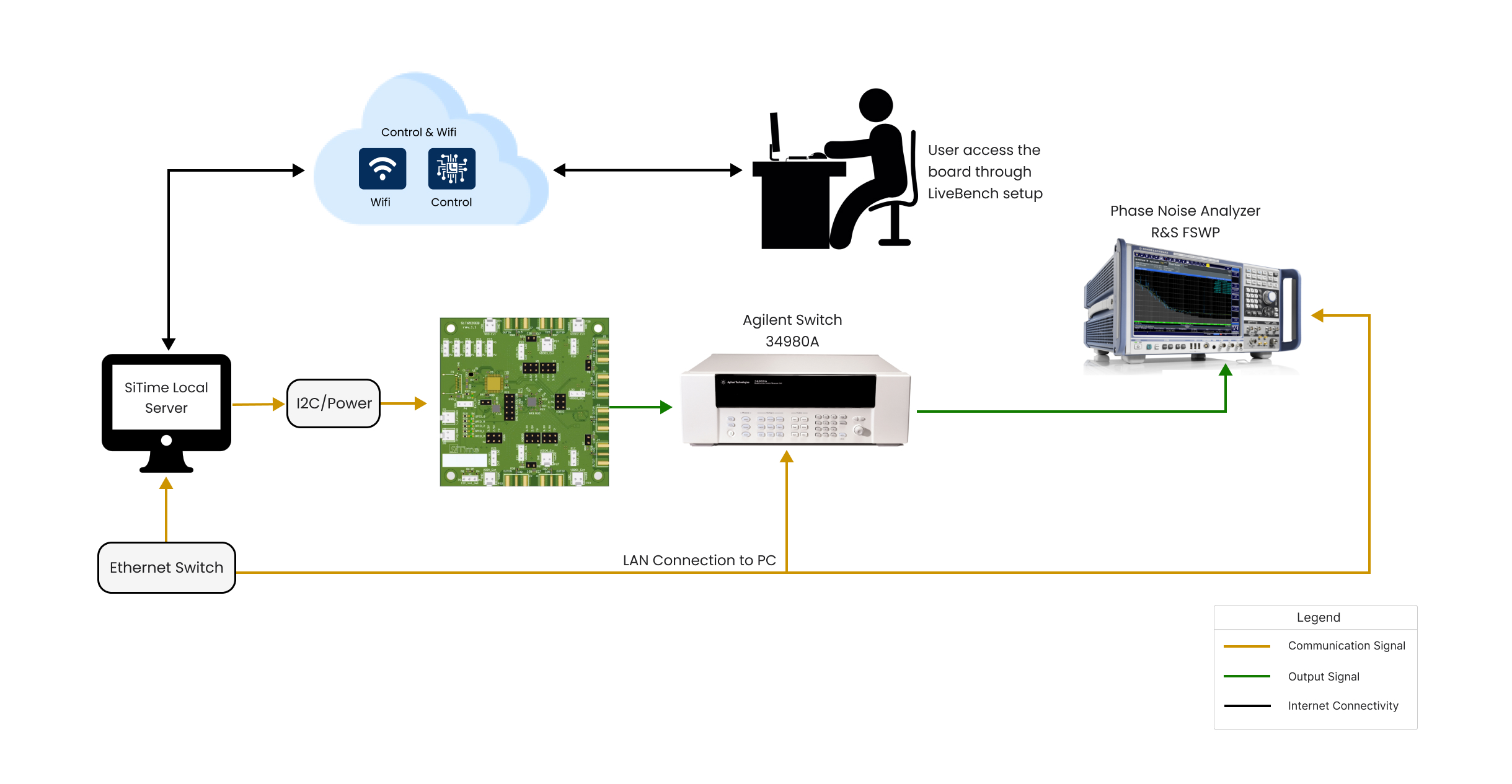

¶ LAB SETUP :
¶ KEY FEATURES :
- Standard Frequencies from 1 MHz to 644.53125 MHz
- Fully integrated MEMS-based clock source
- Configurable clock domain and 4 differential outputs or 8 single-ended outputs
- Configurable I/O incl. LVDS, HCSL, LVPECL, LVCMOS (8 outputs)
- Frequency stability ±20 ppm with internal MEMS
- Configurable spread-spectrum clock generation
- Compliant with PCIe Generation 1 to 6
- Clock fault monitors (Lock Loss)
- Supply voltage of 1.8 V to 3.3 V
- Low phase jitter, 200 fs maximum (12 kHz-20 MHz)
- Resistant to shock/vibration
- Max. Operating range: -40°C to 105°C
- I 2C or SPI serial interface for configuration
- QFN 24 pin 4 x 4 mm, 0.4 mm pitch (wettable flank) package
¶ APPLICATIONS :
- Sync-E, ITU-T G.8262
- Boundary clock, ITU G.8273.2
- Slave clocks, ITU G.812, G.813
- IEEE 1588 ▪ 802.3AS AVB, TSN
- Broadcast video
- 5G RRU and small cells
- 10/100/200/400G Ethernet
- OTN clocking for framers, mappers, and processors
- FPGA and server clocking
- Test and measurement
¶ TEST OUTPUTS :
- This design provides a provision for users to analyze the jitter and phase noise in signals configured for different chip selections as mentioned above for SiT6503EB.
- The user can observe the output response of the signal collected from the phase noise analyzer and look into the summary file data for quick comparison.
- The user can perform phase noise analysis for MEMS Clock generators, MEMS Jitter Cleaner, and MEMS Network Synchronizers.
- The UI provides an option for users to download the analysis data for future reference.
¶ DOCUMENT LINKS :
User guide download link :
https://www.sitime.com/sites/default/files/gated/SiT6503EB-HW-User-Manual.pdf
Cascade SiT9514x GUI Software Version 1.32.7 download link :
https://www.sitime.com/sites/default/files/gated/setup_Cascade-v1.32.7_Win10-SiTime.exe
GUI configuration link :
https://www.sitime.com/sites/default/files/gated/SiT6503EB-HW-User-Manual.pdf
Link to Board User manual link :
SiT6503EB Eval Board User Manual for Cascade SiT9514x devices
Link to Programmer User Manual link :
6506EB Programmer User Manual for Cascade SiT9514x devices
Link to datasheet link :
Cascade-SiT9514x-Product-Brief.pdf
Link to product page :
cascade-sit9514x-clock-system-chip-family
Product purchase link :
https://www.sitime.com/order-part-number?number=Sit95141
https://www.sitime.com/order-part-number?number=Sit95148
https://www.sitime.com/order-part-number?number=Sit95145
